Barcode scanners

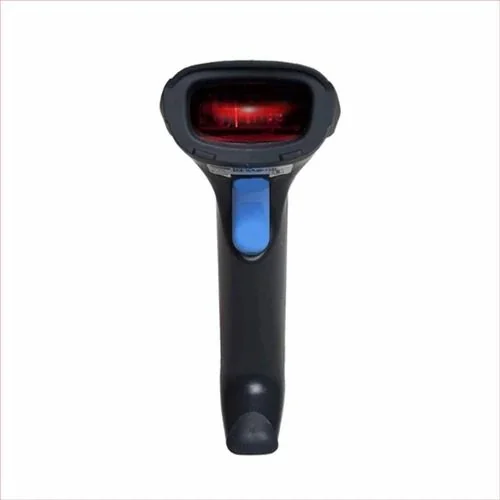

A 1D-only scanner cannot read a QR code. Select a 2D-capable scanner whose supported symbologies include QR Code, and confirm performance using a sample from your actual application.

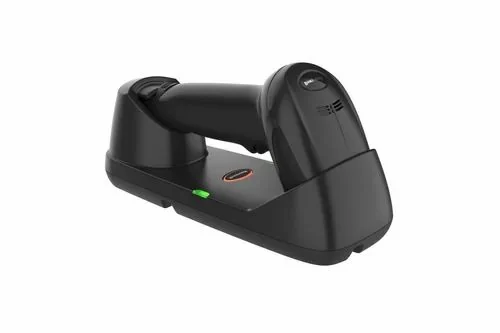

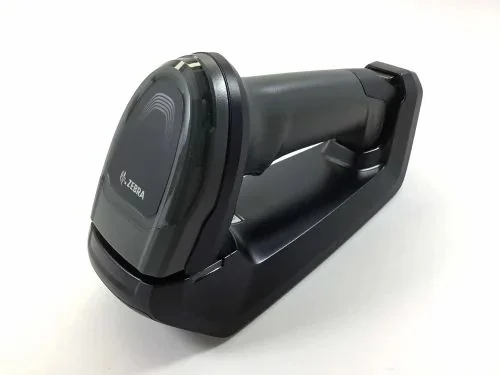

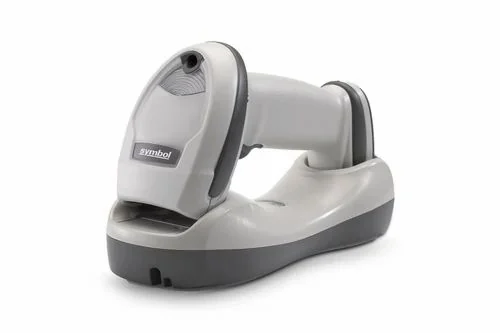

The workflow decides. A wired scanner suits a fixed station without battery charging. A wireless scanner adds movement, but its connection range, battery, charging arrangement and host compatibility need to match the job.

Check the connection and input method supported by both the scanner and billing application. Share the software name, operating system and an example of the required scan result before selecting a model.

Check screen-reading support for the exact scanner model and test the actual code on your device. Mention phone-screen scanning in the enquiry along with code type, code size and the receiving application; 2D support alone is not a complete performance test.

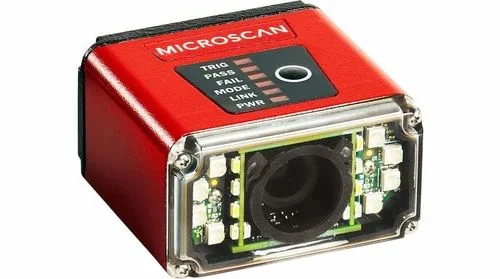

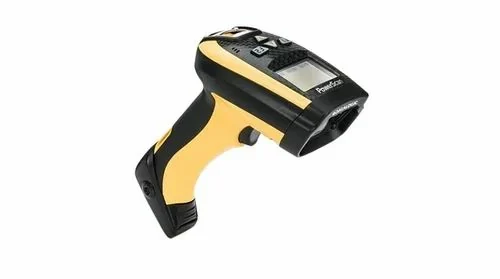

Send a representative direct part mark or a clear photo, identify the component material and describe the reading distance. Confirm explicit DPM support for the proposed scanner and arrange a sample assessment. An ordinary printed-label scanner should not be assumed suitable for marked metal or other component surfaces.

A standalone scanner normally passes decoded barcode data to another device or application. Product lookup, pricing and stock changes are handled by the connected software. Describe the required action after each scan and test it in your billing or inventory application before selecting the scanner.

Some scanners and data-capture tools support configurable prefixes, suffixes or keystrokes. Confirm the exact model and application support, then test the required Enter or Tab behaviour in the intended form. Use model-specific configuration guidance; a setting that works in one application may behave differently in another.

Compare the scanner output with the original barcode value and check how the receiving field formats it. Spreadsheet or application formatting may treat an identifier as a number. Record the scanner configuration, software and expected full value so the data-entry workflow can be checked without changing the product identifier.

Provide the barcode size and type, distance to the item and the positions from which operators must scan. Include shelf height or any packaging that affects access. Ask for the reading range of the proposed scanner on representative codes; a generic range claim is not enough to assess the job.
